Magnetic Bee Product Series
The MagBees Drilling Fluid Demagnetizer is purpose-built to protect rotary steerable systems and logging-while-drilling (LWD) instruments. Featuring a Halbach high-gradient magnetic circuit, it removes micron-sized iron filings from drilling mud, eliminating magnetic interference that can cause turbine stalling or directional data errors. Compatible with water-based, oil-based, and synthetic-based muds, it offers automatic continuous sludge removal and operates in series with solids control systems without shutdown. This reduces tripping for maintenance, extends the service life of downhole precision tools, and minimizes non-productive time.
Technical Specifications Comparison
At-a-glance comparison of core specs for three models to help you choose quickly
| Parameter | Magnetobacterium A-type | Magnetobacterium B-type | Magnetic Bee Type C |
|---|---|---|---|
| Device Body Dimensions (L × W × H) | 2m × 0.8m × 1.5m | 1.8m × 0.7m × 1.5m | 1.5m × 0.6m × 1.5m |
| Roll Dimensions (Diameter × Width) | φ120cm × 43cm wide | φ120cm × 33cm wide | φ100cm × 33cm wide |
| Magnetic removal efficiency for ultrafine powder | ≥99.5% | ≥95.2% | ≥87.8% |
| Maximum Dive Depth | 45CM | 43CM | 48CM |
| Applicable ultrafine powder particle size range | 2μm ~ 100μm | 5μm ~ 100μm | 8μm ~ 100μm |
| Operating Power Consumption | 2.2kW | 1.5kW | 1.1kW |
| Explosion-proof rating | Ex d IIB T4 | Ex d IIB T4 | Ex d IIB T4 |
| Protection Rating | IP65 | IP65 | IP65 |
| Suitable for ultra-fine powder types | Barite, hematite powder, quartz powder, kaolin, and other common non-metallic mineral powders | Barite, hematite powder, quartz powder, kaolin, and other common non-metallic mineral powders | Barite, hematite powder, quartz powder, kaolin, and other common non-metallic mineral powders |
CXF-A Type
Flagship model built for large-scale drilling and high-load operations. Equipped with a high-performance magnetic system and intelligent control to ensure stable operation in extreme conditions.
- Quad-magnet array with powerful suction
- Smart control that adapts to changing operating conditions
- Multi-layer security protection with explosion-proof and fire-resistant design
- For drilling fluid processing volumes of 200–400 m³/day

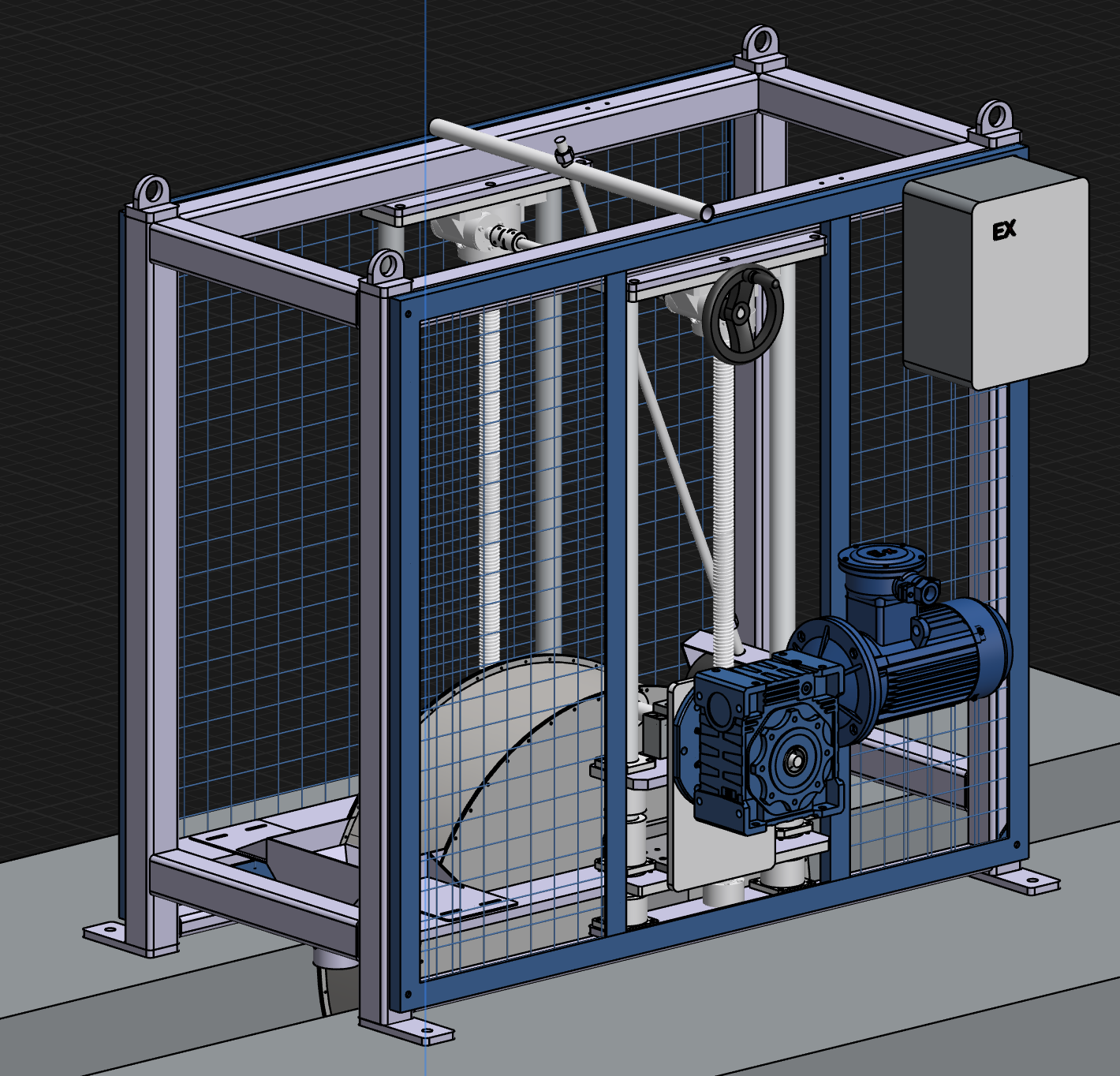

CXF-AB Type
Optimized for medium-sized drilling operations, balancing performance and cost to meet continuous operation demands—making it the top choice for most drilling projects.
- Dual magnetic system design boosts cleaning efficiency by 50%
- Automatic slag removal system; reduces manual intervention
- Remote monitoring interface with IoT support
- For drilling fluid processing volumes of 100–200 m³/day

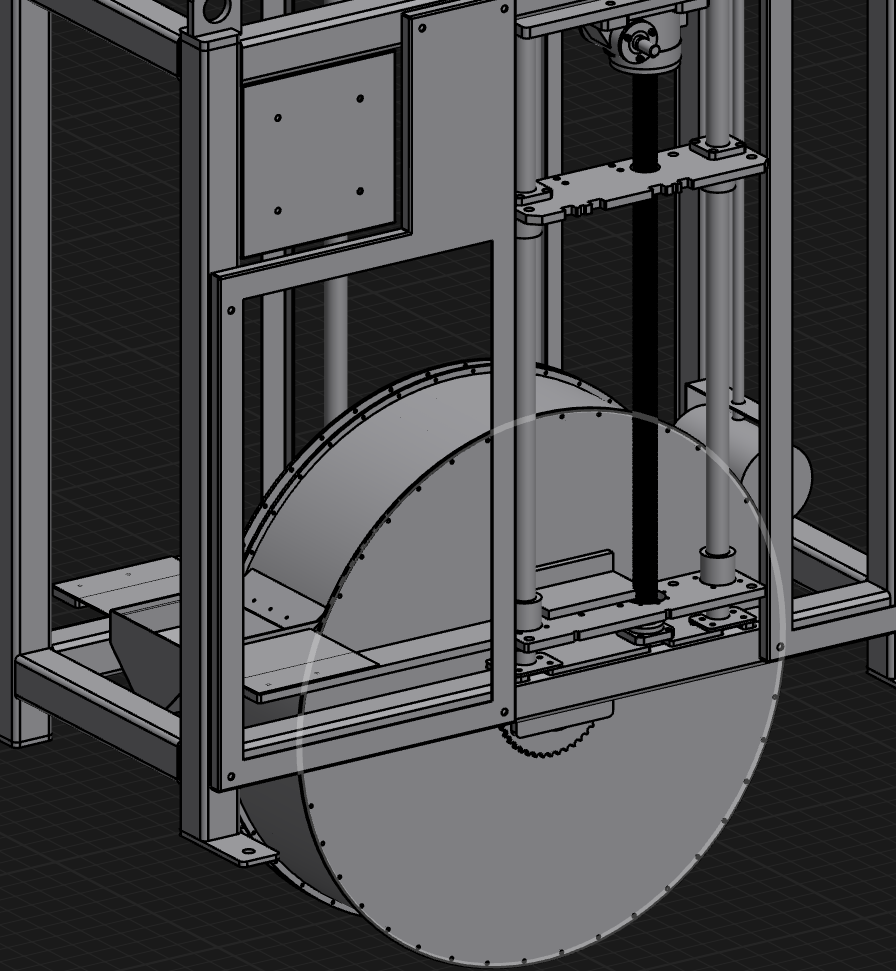

CXF-C Model
Designed for medium and small drilling operations: compact structure, easy installation, ideal for intermittent tasks such as workovers and well testing.
- Lightweight design for easy transport and installation
- Smart inverter control for lower energy consumption
- Modular design for easy maintenance
- For drilling fluid processing volumes of 50–100 m³/day
Not sure which model to choose?
Our business team will recommend the most suitable model based on your drilling conditions and processing requirements.
